source Directory Reference

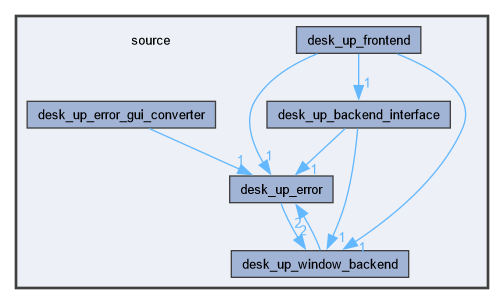

Directory dependency graph for source:

Directories
	desk_up_backend_interface
	desk_up_error
	desk_up_error_gui_converter
	desk_up_frontend
	desk_up_window_backend

Detailed Description

DeskUp internal functioning

DeskUp is organized into three main layers:

• Frontend: GUI of window and workspace operations.
• Core: backend initialization and management logic.
• Backend: platform-specific implementations for Windows

This document is here for anyone to have a clear understanding of how DeskUp operates, or at least to know where to look for a specific thing

---

1. Initialization - Choosing and bootstrapping a backend

When DeskUp starts, the application calls DU_Init (declared in source/desk_up_window_backend/window_core.h and implemented in source/desk_up_window_backend/window_core.cc).

DU_Init() performs three key actions:

1. Iterates through a list of available backend bootstraps (currently only Windows).
   • The Windows backend defines its bootstrap (winWindowDevice) in source/desk_up_window_backend/window_backends/desk_up_win/desk_up_win.h.
2. For each backend, it checks availability via DeskUpWindowBootStrap::isAvailable() (Windows maps to WIN_isAvailable).
3. Once it finds a working backend, it:
   • Creates the device with DeskUpWindowBootStrap::createDevice() (Windows maps to WIN_CreateDevice).
   • Retrieves the base folder with DeskUpWindowDevice::getDeskUpPath() (Windows maps to WIN_getDeskUpPath).
   • Sets the global variables:
     • DESKUPDIR base workspace directory.
     • current_window_backend active backend device.

If initialization succeeds, DU_Init() logs the connected backend and returns 1. If none is available, it returns 0.

---

2. High-level operations DeskUpBackendInterface facade

DeskUpBackendInterface is defined in source/desk_up_backend_interface/desk_up_backend_interface.h and implemented in source/desk_up_backend_interface/desk_up_backend_interface.cc.

This class acts as the frontend facade, coordinating workspace-level operations with the backend.

DeskUpBackendInterface::saveAllWindowsLocal(std::string workspaceName)

1. Builds <DESKUPDIR>/<workspaceName> using the global path set by DU_Init().
2. Ensures the directory exists (via std::filesystem).
3. Requests the active backend to enumerate all windows through current_window_backend->getAllWindows(current_window_backend.get()).
4. Receives a list of windowDesc records from the backend.
5. Saves each record to a text file using windowDesc::saveTo().

If any backend or I/O operation fails, the function catches the exception and returns 0, avoiding crashes.

---

3. Window representation The windowDesc structure

Defined in source/desk_up_window_backend/window_desc/window_desc.h and implemented in source/desk_up_window_backend/window_desc/window_desc.cc.

Each windowDesc instance represents a window in an abstract, cross-platform way.

Fields:

• name window or executable name.
• x, y, w, h position and size.
• pathToExec absolute path to the owning executable.

Behavior:

• saveTo(path) writes the above fields as plain text.
• Returns 0 if the path is empty or cannot be opened.
• operator!() is a validity check (true if geometry is all zero).

---

4. Backend implementation Windows

The Windows backend lives in source/desk_up_window_backend/window_backends/desk_up_win/desk_up_win.h and source/desk_up_window_backend/window_backends/desk_up_win/desk_up_win.cc.

It defines:

DeskUpWindowBootStrap winWindowDevice = {
    "win",
    WIN_CreateDevice,
    WIN_isAvailable
};

Backend creation

• WIN_CreateDevice() builds a new DeskUpWindowDevice and wires function pointers for:
  • getAllWindows
  • getWindowHeight, getWindowWidth, getWindowXPos, getWindowYPos
  • getDeskUpPath
  • ...

All the common functions necessary for any platform to make DeskUp work. If there are platform-specific calls, they won't appear in the API.

Enumerating windows

WIN_getAllWindows() calls EnumDesktopWindows, which triggers a callback to:

1. Skip invisible or zero-sized windows.
2. Populate a windowDesc using:
   • WIN_getWindowXPos, WIN_getWindowYPos, WIN_getWindowWidth, WIN_getWindowHeight GetWindowInfo.
   • WIN_getPathFromWindow process path via GetWindowThreadProcessId OpenProcess(PROCESS_QUERY_LIMITED_INFORMATION) QueryFullProcessImageNameW.
3. Append each valid record to a std::vector<windowDesc>.

Workspace path resolution

WIN_getDeskUpPath() determines the folder:

• Uses SHGetKnownFolderPath(FOLDERID_RoamingAppData) when available.
• Falls back to APPDATA% or the executable directory.
• Ensures a DeskUp/ folder exists.

---

5. How everything connects Flow summary

DU_Init()
  |--> winWindowDevice.isAvailable() -> WIN_isAvailable()
  |--> winWindowDevice.createDevice() -> WIN_CreateDevice()
  |--> dev.getDeskUpPath() -> WIN_getDeskUpPath()
  \--> sets DESKUPDIR and current_window_backend

DeskUpBackendInterface::saveAllWindowsLocal("WorkspaceName")
  |--> builds <DESKUPDIR>\WorkspaceName
  |--> current_window_backend->getAllWindows(...) -> WIN_getAllWindows()
  |     |--> EnumDesktopWindows -> WIN_createAndSaveWindow()
  |     \--> fills std::vector<windowDesc>
  |--> iterates vector
  |     \--> windowDesc::saveTo(<workspace path>)
  \--> returns success (1) or failure (0)

---

6. File map

Layer	Path	Description
Frontend	source/desk_up/mainWindow.h / .cpp	Qt GUI layer orchestrating workspace operations.
Core (Backend interface)	source/desk_up_backend_interface/desk_up_backend_interface.h / .cc	Backend communication facade (DeskUpBackendInterface).
Core (Initialization)	source/desk_up_window_backend/window_core.h / .cc	Backend initialization (DU_Init) and global state.
Backend (Windows)	source/desk_up_window_backend/window_backends/desk_up_win/desk_up_win.h / .cc	Implements Windows-specific logic.
Window record	source/desk_up_window_backend/window_desc/window_desc.h / .cc	Data structure representing windows.
Backend utilities	source/desk_up_window_backend/backend_utils/backend_utils.cc	Shared helper functions for backends.
Interfaces	source/desk_up_window_backend/desk_up_window_device.h, desk_up_window_bootstrap.h	Device and bootstrap definitions.
Error system	source/desk_up_error/ and source/desk_up_error_gui_converter/	Error logic and GUI integration.
Entry point	source/desk_up/main.cpp	Program start (Qt).

---

7. Extensibility

DeskUps modular design allows adding new platforms easily.

Adding a new backend only requires implementing a DeskUpWindowBootStrap with:

• isAvailable() to detect platform support.
• createDevice() to provide the correct function pointers.

It also facilitates creating tests for the backend, as one can create a testing device, which includes predefined values for each function. Multiple devices can be connected, so as to test multiple functionalities.
