desk_up_win.h File Reference

Bootstrap and functions for the Windows window backend (DeskUp). More...

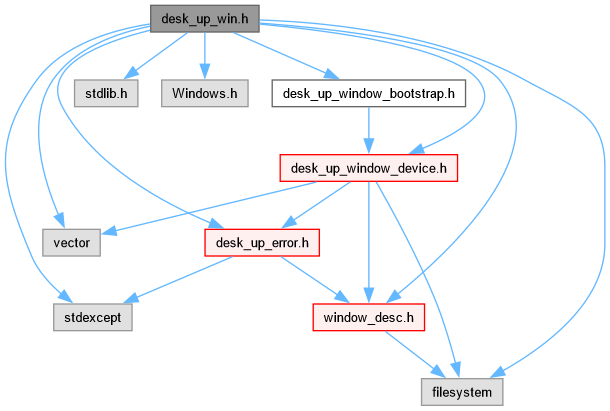

Include dependency graph for desk_up_win.h:

Go to the source code of this file.

Functions
bool	WIN_isAvailable () noexcept
	Returns whether the Windows backend is available.
DeskUpWindowDevice	WIN_CreateDevice () noexcept
	Creates a Windows DeskUpWindowDevice.
void	WIN_destroyDevice (DeskUpWindowDevice *_this) noexcept
	Deletes a Windows DeskUpWindowDevice.
DeskUp::Result< std::string >	WIN_getDeskUpPath () noexcept
	Returns the base DeskUp working path on the system.
DeskUp::Result< int >	WIN_getWindowXPos (DeskUpWindowDevice *_this) noexcept
	Gets the X position (top-left corner) of the active (client) window in the device.
DeskUp::Result< int >	WIN_getWindowYPos (DeskUpWindowDevice *_this) noexcept
	Gets the Y position (top-left corner) of the active (client) window in the device.
DeskUp::Result< unsigned int >	WIN_getWindowWidth (DeskUpWindowDevice *_this) noexcept
	Gets the width of the active (client) window in the device.
DeskUp::Result< unsigned int >	WIN_getWindowHeight (DeskUpWindowDevice *_this) noexcept
	Gets the height of the active (client) window in the device.
DeskUp::Result< fs::path >	WIN_getPathFromWindow (DeskUpWindowDevice *_this) noexcept
	Gets the absolute path of the executable that owns the active window.
DeskUp::Result< std::vector< windowDesc > >	WIN_getAllOpenWindows (DeskUpWindowDevice *_this) noexcept
	Enumerates all visible/non-minimized windows on the desktop.
DeskUp::Result< windowDesc >	WIN_recoverSavedWindow (DeskUpWindowDevice *_this, const fs::path &path) noexcept
	Loads a window description from a saved workspace file.
DeskUp::Status	WIN_loadProcessFromPath (DeskUpWindowDevice *_this, const fs::path &path) noexcept
	Creates a process from the specified path.
DeskUp::Status	WIN_resizeWindow (DeskUpWindowDevice *_this, const windowDesc window) noexcept
	Resizes a window according to the windowDesc parameter geometry.
DeskUp::Result< unsigned int >	WIN_closeProcessFromPath (DeskUpWindowDevice *, const fs::path &path, bool allowForce) noexcept
	This function closes all the instances associated with an executable, specified by the path parameter.
void	WIN_TEST_setHWND (DeskUpWindowDevice *_this, HWND hwnd)
	Test-only helper to set the internal HWND for the device.

Variables
DeskUpWindowBootStrap	winWindowDevice
	Windows backend bootstrap descriptor.

Detailed Description

Bootstrap and functions for the Windows window backend (DeskUp).

This file is part of DeskUp

Author

Nicolas Serrano Garcia serra.nosp@m.noga.nosp@m.rcian.nosp@m.icol.nosp@m.as@gm.nosp@m.ail..nosp@m.com

Date

2025

Copyright

Copyright (C) 2025 Nicolas Serrano Garcia

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program. If not, see https://www.gnu.org/licenses/.

Function Documentation

WIN_closeProcessFromPath()

DeskUp::Result< unsigned int > WIN_closeProcessFromPath ( DeskUpWindowDevice * , const fs::path & path, bool allowForce )

noexcept

This function closes all the instances associated with an executable, specified by the path parameter.

Parameters

_this	The same device instance.
path	A std::string instance representing the path to check.
allowForce	Whether if the call should force the windows it finds to close.

Returns

The number of associated windows closed in the process. @errors

• Level::Fatal, ErrType::InvalidInput → Empty path.
• Level::Retry, ErrType::Os → Process enumeration or termination failure.

Version

0.2.0

Date

2025

WIN_CreateDevice()

DeskUpWindowDevice WIN_CreateDevice ( )

noexcept

Creates a Windows DeskUpWindowDevice.

Wires the device function pointers to the Windows backend implementations and allocates the internal data required.

Returns

An initialized DeskUpWindowDevice.

Version

0.1.0

Date

2025

WIN_destroyDevice()

void WIN_destroyDevice ( DeskUpWindowDevice * _this )

noexcept

Deletes a Windows DeskUpWindowDevice.

Deletion is done as a wrapper function in window_core.cc, done by DU_destroy via the pointer function

Version

0.3.2

Date

2025

WIN_getAllOpenWindows()

DeskUp::Result< std::vector< windowDesc > > WIN_getAllOpenWindows ( DeskUpWindowDevice * _this )

noexcept

Enumerates all visible/non-minimized windows on the desktop.

Parameters

_this

The same device instance.

Returns

std::vector<windowDesc> with the abstract description of each window. @errors

• Level::Fatal, ErrType::Unexpected → Device or windowData became corrupt during enumeration (explicit check after EnumDesktopWindows fails and error.level() == Error).
• Level::Warning, ErrType::Unexpected → EnumDesktopWindows returned false for an unexpected reason not classified as fatal/error (catch-all for unanticipated callback failures).

Note

Indirect errors (via WIN_CreateAndSaveWindowProc callback): During enumeration, each window is processed via a callback that invokes WIN_getPathFromWindow, WIN_getWindowXPos, WIN_getWindowYPos, WIN_getWindowWidth, and WIN_getWindowHeight. The callback may generate:

• Level::Error, ErrType::InvalidInput → Callback parameters missing (improbable).
• Level::Error, ErrType::DeviceNotFound → Missing device/internal data while processing a window.
• Fatal errors from any geometry/path call → Bubble up immediately, aborting enumeration.
• Skip errors (e.g., invalid HWND mid-enumeration) → Individual window skipped, enumeration continues.
• Other Error-level issues → Tolerated once (static flag levelErrorHappened), fatal on second consecutive occurrence. Since the geometry and path functions each call retryOp, refer to their individual documentation (WIN_getWindowXPos, WIN_getWindowYPos, WIN_getWindowWidth, WIN_getWindowHeight, WIN_getPathFromWindow) for complete Windows error code mappings that may propagate through the callback.

Version

0.1.0

Date

2025

Here is the call graph for this function:

WIN_getDeskUpPath()

DeskUp::Result< std::string > WIN_getDeskUpPath ( )

noexcept

Returns the base DeskUp working path on the system.

Points to the top-level directory where user workspaces are stored. The directory is ensured to exist (created if necessary).

Returns

std::string with the absolute path to the DeskUp top-level folder. @errors

• Level::Retry, ErrType::Io → Filesystem creation failed (non-fatal)

Version

0.1.0

Date

2025

WIN_getPathFromWindow()

DeskUp::Result< fs::path > WIN_getPathFromWindow ( DeskUpWindowDevice * _this )

noexcept

Gets the absolute path of the executable that owns the active window.

Parameters

_this

The same device instance.

Returns

fs::path with the process image path on success. @errors

• Level::Error, ErrType::DeviceNotFound → Missing or invalid device/internal data (explicit check).
• Level::Skip, ErrType::InvalidInput → No valid HWND bound (explicit check).

Note

Indirect errors (via retryOp): This function internally retries three Windows API sequences: GetWindowThreadProcessId, OpenProcess + GetExitCodeProcess, and path resolution (e.g. QueryFullProcessImageName). Failures inside those lambdas are converted by Error::fromLastWinError. The most relevant Windows codes and their mapped DeskUp classifications for this routine are:

• ERROR_INVALID_WINDOW_HANDLE → Level::Skip, ErrType::ConnectionRefused (invalid/closed HWND when obtaining PID).
• ERROR_ACCESS_DENIED (transformed to ERROR_ACCESS_DISABLED_BY_POLICY before returning) → Level::Skip, ErrType::Default (policy or permission restriction when opening the process).
• ERROR_NOT_ENOUGH_MEMORY / ERROR_OUTOFMEMORY / ERROR_TOO_MANY_OPEN_FILES → Level::Fatal, ErrType::InsufficientMemory (system resource exhaustion during any queried step).
• ERROR_SHARING_VIOLATION, ERROR_INVALID_PARAMETER, ERROR_INVALID_NAME, ERROR_FILENAME_EXCED_RANGE, ERROR_BAD_FORMAT → Level::Skip, ErrType::InvalidInput (unexpected invalid handle/arguments surfaced by underlying APIs).
• ERROR_FILE_NOT_FOUND, ERROR_PATH_NOT_FOUND → Level::Skip, ErrType::InvalidInput (executable image could not be resolved).
• ERROR_DISK_FULL → Level::Fatal, ErrType::Io (unlikely here, but propagated if encountered reading image name).
• ERROR_WRITE_FAULT / ERROR_READ_FAULT / ERROR_CRC / ERROR_IO_DEVICE / ERROR_FUNCTION_FAILED → Level::Retry, ErrType::Io or ErrType::Unexpected (transient or unexpected low-level I/O issues; retries attempted before surfacing).
• Other unmapped codes → Level::Default, ErrType::Default. These are not emitted directly by WIN_getPathFromWindow; they are rethrown from retryOp after classification. Only the explicit pre-check errors are listed in the main @errors section above.

Version

0.1.0

Date

2025

WIN_getWindowHeight()

DeskUp::Result< unsigned int > WIN_getWindowHeight ( DeskUpWindowDevice * _this )

noexcept

Gets the height of the active (client) window in the device.

Parameters

_this

The same device instance.

Returns

unsigned int with the window height. @errors

• Level::Error, ErrType::DeviceNotFound → Missing or invalid device/internal data (explicit check).
• Level::Skip, ErrType::InvalidInput → No valid HWND bound (explicit check).

Note

Indirect errors: Relies on retryOp for GetWindowInfo; propagated errors are produced by retryOp and not enumerated here.

Version

0.1.0

Date

2025

WIN_getWindowWidth()

DeskUp::Result< unsigned int > WIN_getWindowWidth ( DeskUpWindowDevice * _this )

noexcept

Gets the width of the active (client) window in the device.

Parameters

_this

The same device instance.

Returns

unsigned int with the window width. @errors

• Level::Error, ErrType::DeviceNotFound → Missing or invalid device/internal data (explicit check).
• Level::Skip, ErrType::InvalidInput → No valid HWND bound (explicit check).

Note

Indirect errors: Additional system errors may be returned via retryOp wrapping GetWindowInfo; see its implementation and Error::fromLastWinError for classification.

Version

0.1.0

Date

2025

WIN_getWindowXPos()

DeskUp::Result< int > WIN_getWindowXPos ( DeskUpWindowDevice * _this )

noexcept

Gets the X position (top-left corner) of the active (client) window in the device.

Parameters

_this

The same device instance.

Returns

int with the X coordinate of the window. @errors

• Level::Error, ErrType::DeviceNotFound → Missing or invalid device/internal data (explicit check).
• Level::Skip, ErrType::InvalidInput → No valid HWND bound (explicit check).

Note

Indirect errors: This function wraps GetWindowInfo with retryOp, which may propagate additional system-derived errors (fatal/skip/warning/retry) classified via Error::fromLastWinError. Those are not enumerated here because they are not produced directly by this function but rethrown from retryOp.

Version

0.1.0

Date

2025

WIN_getWindowYPos()

DeskUp::Result< int > WIN_getWindowYPos ( DeskUpWindowDevice * _this )

noexcept

Gets the Y position (top-left corner) of the active (client) window in the device.

Parameters

_this

The same device instance.

Returns

int with the Y coordinate of the window. @errors

• Level::Error, ErrType::DeviceNotFound → Missing or invalid device/internal data (explicit check).
• Level::Skip, ErrType::InvalidInput → No valid HWND bound (explicit check).

Note

Indirect errors: Uses retryOp around GetWindowInfo; any Windows-origin errors are classified and rethrown by retryOp (see Error::fromLastWinError). They are not listed here.

Version

0.1.0

Date

2025

WIN_isAvailable()

bool WIN_isAvailable ( )

noexcept

Returns whether the Windows backend is available.

Returns

true when compiled/executed on Windows, false otherwise.

Version

0.1.0

Date

2025

WIN_loadProcessFromPath()

DeskUp::Status WIN_loadProcessFromPath ( DeskUpWindowDevice * _this, const fs::path & path )

noexcept

Creates a process from the specified path.

Parameters

_this	The same device instance.
path	a literal representing the path to the executable linked with the program.

Returns

DeskUp::Status indicating success or failure. @errors

• Level::Fatal, ErrType::InvalidInput → Empty or invalid path/device.
• Level::Retry, ErrType::NotFound → Process started but main HWND not found.
• Level::Retry, ErrType::Os → ShellExecuteEx failed.

Version

0.2.0

Date

2025

WIN_recoverSavedWindow()

DeskUp::Result< windowDesc > WIN_recoverSavedWindow ( DeskUpWindowDevice * _this, const fs::path & path )

noexcept

Loads a window description from a saved workspace file.

Parameters

_this	The same device instance.
path	Path to the saved window description file.

Returns

windowDesc with geometry and executable path. @errors

• Level::Fatal, ErrType::InvalidInput → File missing or incomplete.
• Level::Retry, ErrType::Io → Filesystem or parse failure.

Version

0.2.0

Date

2025

WIN_resizeWindow()

DeskUp::Status WIN_resizeWindow ( DeskUpWindowDevice * _this, const windowDesc window )

noexcept

Resizes a window according to the windowDesc parameter geometry.

Information about the window whose geometry is intended to modify must be specified inside the _this->internalData parameter.

Parameters

_this	The same device instance.
window	a windowDesc instance whose geometry will be applied to resize the window.

Returns

DeskUp::Status indicating success or failure. @errors

• Level::Fatal, ErrType::InvalidInput → Invalid window device.
• Level::Retry, ErrType::NotFound → HWND not found.
• Level::Warning, ErrType::InvalidInput → Zero or negative width/height.
• Level::Retry, ErrType::Os → SetWindowPos failed.

Version

0.2.0

Date

2025

WIN_TEST_setHWND()

void WIN_TEST_setHWND	(	DeskUpWindowDevice *	_this,
		HWND	hwnd )

Test-only helper to set the internal HWND for the device.

Parameters

_this	The device instance.
hwnd	The HWND to assign.

Note

Only available when DESKUP_ENABLE_WIN32_TEST_HOOKS is defined.

Variable Documentation

winWindowDevice

DeskUpWindowBootStrap winWindowDevice

extern

Windows backend bootstrap descriptor.

This global is used by DU_Init to determine whether Windows is available on the device and to create the corresponding DeskUpWindowDevice. After creation, all calls should go through the device instance (e.g., via current_window_device in window_core.h or equivalent).

See also

DeskUpWindowBootStrap

DeskUpWindowDevice

Version

0.1.0

Date

2025
